Product features
The Container Cable Seal Y-245 is suitable for a wide range of locking applications, thanks to its 1.8mm wire diameter and adjustable cable length. The wire is made of galvanized steel aviation cable, while the seal body is constructed from PP plastic with an internal locking mechanism made of carbon steel.
This cable seal is a tamper-evident device designed to secure various types of cargo, such as shipping containers, trailers, railcars, and other freight equipment. It consists of a locking mechanism attached to a flexible steel cable, which is threaded through openings on container doors and secured with a locking head.
Product applications
Container cable seals are commonly used for tagging machinery, vehicles and high-value assets or storage containers. They're a secure alternative to locks in secure closures that are not frequently opened when the user does not want to monitor access to keys. Choose the right material.
Product parameters
|
Product name |
Container Cable Seal Y-245 |
|
Color |
Red/Orange/Yellow/ Green/ Blue/White Customized color |
|
Tensile Strength |
1800N |
|
Material |
Body: PP plastic & Carbon steel inner locking Wire: Galvanized steel aircraft cable wire |
|
Size |
Body size: 25.4mm height and 12.7mm width Wire size: 1.8mm diameter and cable length can be customized |
|
Printing |
Laser printing customized name & logo, serial numbers, barcode/ QR code |
|
Certificate |
ISO9001 |
|
Outer box size |
34 x 30 x 15cm |
|
Gross weight per box |
10kg |
|
MOQ |
10000 |
|
Application |
Freight container doors, Truck trailer doors, High valued cargo in drums/containers Tank wagons |
Product features
One-Way Locking Mechanism
This container cable seal is use friendly and high tamper-evident. Once the container cable seal body is locked, it will be hardly open by hand. Cutter tool is essential if clients want to open the cable lock. Strong and versatile semi-barrier seal, it is used widely for securing trucks, tanker trucks, air cargo containers, shipping containers, rail cars, calibrators and valves.

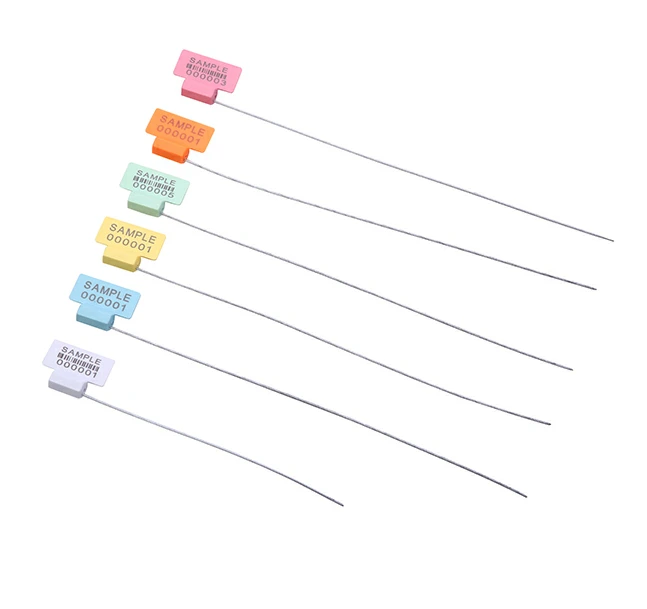

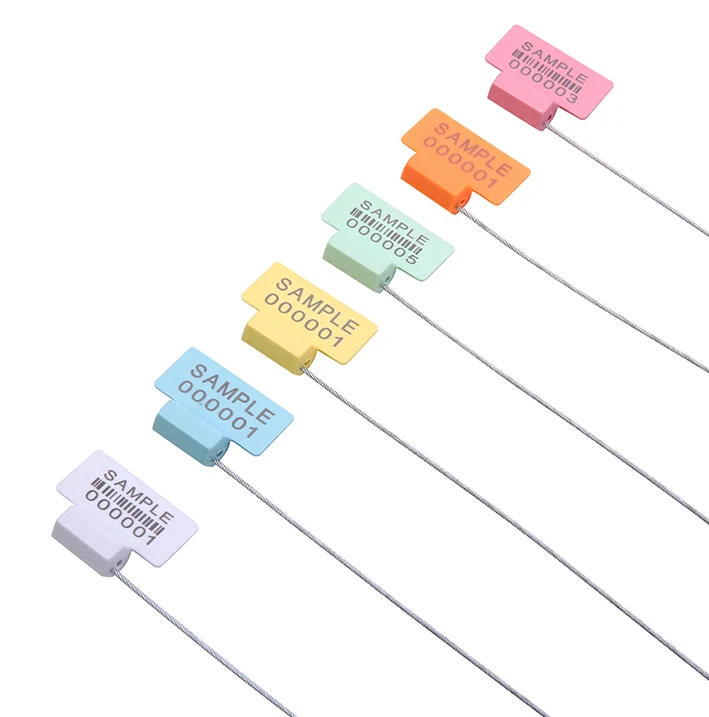

Different Colors Available
There are a variety colors for this container cable seal lock, usual stock color is red, orange, yellow, green, blue, white, natural, silver, golden or any other colors customized. The most hot selling color is yellow color, light color the printing effect will be more better than dark colors.
Larger Printing Area
This container cable seal Y-245 with larger printable tags, the extended area of the seal body offers sufficient possibilities for further individual labelling such as bar code, logo, company name or text. If big logo or QR code laser printing is needed, this electrical cable seal will be the right choice, laser marking for high level of security.
